New Directions in Water Treatment Cooling Systems

Sustainable approaches that are benefiting the environment—and the bottom line
[ Page 1 of 5 ]
Provided by Process Cooling

Learning Objectives:

  1. Explain how crossflow microsand filtration differs from traditional water filtration methods.
  2. Discuss how an integrated three-step improvement sequence of “detect, determine and deliver” can optimize a process cooling system.
  3. Describe how industrial cooling towers can use reclaimed water in a way that is beneficial to the plant and the ecosystem.
  4. List some ways companies can maintain consistent water quality throughout the process cooling and treatment system.

Credits:

1 PDH
0.1 IACET CEU*
1 AIA LU/Elective
1 PDH*
BNP Media has met the standards and requirements of the Registered Continuing Education Program. Credit earned on completion of this program will be reported to RCEP.net. Certificates of Completion will be issued to all participants via the RCEP.net online system. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the RCEP.
This course may qualify for continuing education through the NYSED. For further information, please visit the NYSED website at http://www.op.nysed.gov/prof/pels/peceques.htm.
This course may qualify for continuing education through the FBPE.

Process cooling systems require treatments that are environmentally unsustainable and often cost companies more in the long-term. These articles offer a look into new approaches to industrial wastewater treatment and conservation that make cooling systems more efficient while providing solutions to the issues of water protection.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

Technologies that reduce chemical use in process cooling water towers provide many benefits.

By Obaidullah Mohiuddin

Crossflow Microsand Filtration for Cooling Tower Water Treatment

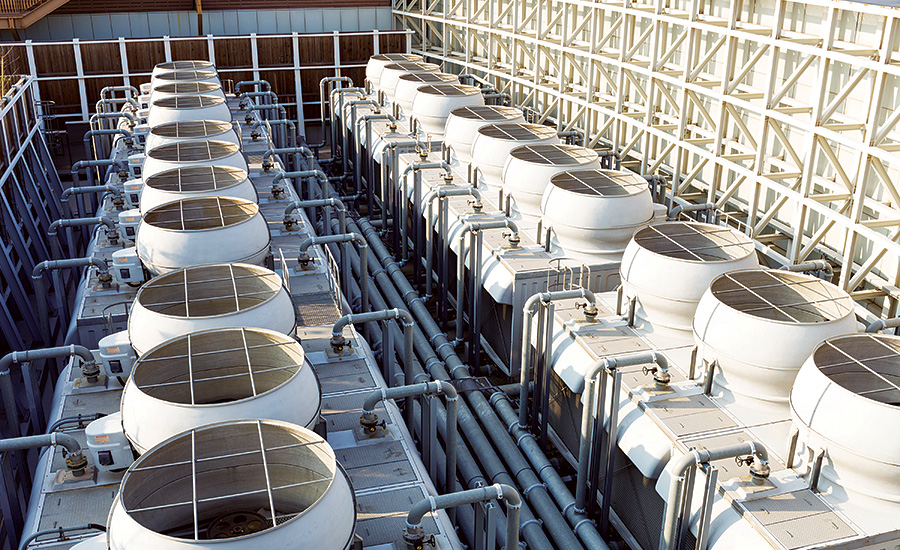

Cooling towers absorb heat from process cooling systems and eject it into the atmosphere. Proper maintenance is essential for reducing bacteria and increasing effeciency.

It is critical that process cooling systems relying on cooling towers have robust but cost-effective filtration equipment for water reuse. Cooling tower water frequently contains hazardous materials that should be managed to avoid reintroducing them into the process cooling equipment or system.

At the same time, it is crucial that any industrial process consider its impact on the local water supply. To protect the ecosystem, technologies that can reduce the chemicals used in process cooling water towers should be implemented wherever practicable. One technology that can help mitigate the use of water treatment chemicals is effective filtration via crossflow microsand units.

During cooling tower operation — in order to reduce the concentration of contaminants in the cooling towers for process cooling — a substantial amount of water must be discharged periodically. This discharged water, or blowdown, contains anti-scaling, anti-corrosion and anti-microbiological chemicals (used, not coincidentally, to control scaling, corrosion and fouling). The blowdown water typically is discharged into local sewage or storm-water systems. Due to the variation of chemicals used in cooling towers, it is not possible to quantify the exact amount of pollutants discharged globally.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

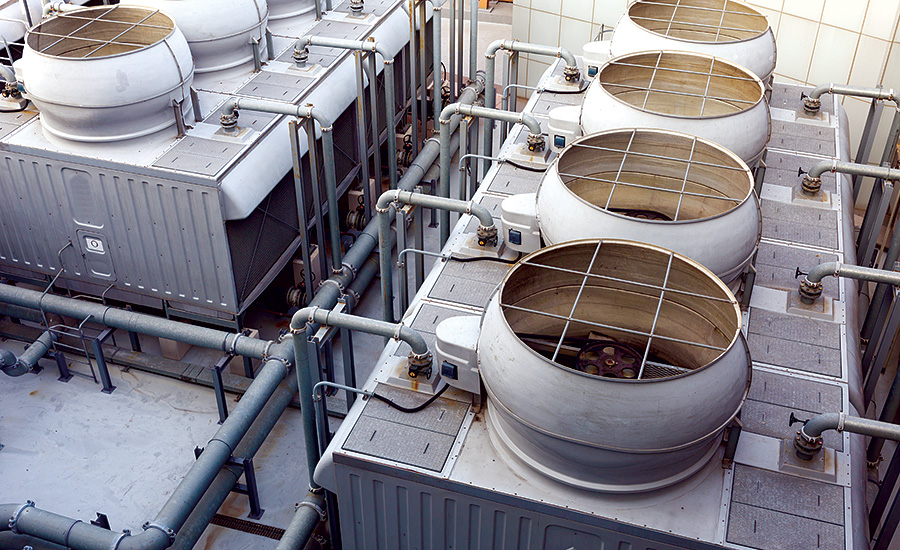

It is crucial that any industrial process consider its impact on local water supply. Technologies that can reduce the chemicals used in process cooling water towers can help protect the ecosystem.

How Filtration Affects Water Treatment

Cooling towers absorb heat from water cooling systems and eject it into the atmosphere. Proper maintenance of cooling towers is essential for reducing bacteria and increasing efficiency. Bacteria such as Legionella as well as protozoans and algae can colonize in cooling tower systems.

Crossflow microsand filtration technologies have become commercially available to treat the water in cooling towers used for process cooling. These systems maximize efficiency and minimize the spread of microorganisms while also reducing the need for chemical treatments. Crossflow microsand filtration (CMF) captures microscopic and even submicron particles. Crossflow microsand filtration systems can improve the efficiency of chemicals while allowing the use of fewer chemicals to achieve the same results.

As a global research organization — focused on advocacy for water, energy and other critical issues at the intersection of the environment and development — Eneref Institute examined the benefits of crossflow microsand filtration technology for process cooling waters.

Traditional deep-bed multimedia — or sand — filters in water cooling towers typically capture particles of 20 microns and above. While such systems can remove up to 90 percent of contaminant particles by weight, they leave unchecked all fine particles — the particulates most responsible for the fouling that supports Legionella and system inefficiency.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

Crossflow microsand filtration technologies have become commercially available to treat the water in cooling towers used for process cooling. These systems can help minimize the spread of microorganisms while also reducing the need for chemical treatments.

Cooling tower water-analysis reports typically show that 95 percent of particulates are less than 5 microns in size. When measured by mass, however, 80 percent of the bulk is comprised of particles greater than 15 microns. Traditional filtration systems reduce the quantity of larger particles but not the smaller particles that cause fouling — demonstrating why parts per million (ppm) is an incomplete measure of total suspended solid (TSS) in water.

Crossflow microsand filtration systems differ from traditional-flow media filters in a number of ways. Rather than a simple vertical flow, water is crossflowed, tangentially, across the top layer of the media bed by an injector. The flow scours the media’s top surface layer, preventing surface blinding by lifting larger particles into suspension. The media bed then becomes a clean, free space in which fine particulates are trapped. In this way, crossflow microsand filtration technology allows for optimal use of the media surface area and removes particles down to submicron levels — smaller than one micron. Thus, the technology helps protect the cooling tower that is used for the process cooling by reducing the risk of fouling, scaling and corrosion.

Filtration systems cannot remove dissolved solids or increase the cycle of concentration (the ratio of dissolved solids in the cooling tower to dissolved solids in the makeup water). Because dissolved solids are removed by purging water and topping up the tower with fresh makeup water, frequent blowdown is the only viable solution to reduce the concentration of total dissolved solids (TDS). However, frequent blowdown sends water treatment chemicals into the environment, perpetuating the cycle.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

Cooling towers consume a great deal of water, and competition with agriculture, industry and municipalities will only exacerbate water scarcity concerns. An understanding of water filtration systems may help reduce the amount chemicals discharged into the environment.

Filtration Effect on Chemical Treatments

Unlike total dissolved solids, total suspended solids (TSS) can be reduced by filtration. Reducing total suspended solids makes chlorine and other disinfectants more effective. This allows chemical treatments to be reduced by as much as 35 percent. Therefore, the rate of corrosion from oxidizing chemicals as well as the chemical odor are reduced. Furthermore, it may no longer be necessary to use coagulants to fuse and jettison small particulates.

In addition, reducing chemical use reduces material and labor costs. More significantly, lessening chemical use offers environmental benefits by decreasing the number of chemicals released into the ecosystem.

Fouling and Scaling. When suspended solid particles accumulate and settle on heat transfer surfaces, or heat exchangers, fouling occurs. Fouling decreases the efficiency of heat exchangers, increases maintenance and forces shutdowns of the process cooling system.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

Filtration technologies can help reduce the chemicals used in process cooling water towers. The Eneref Institute conducted research to identify methods that can help mitigate fouling, scaling and microbiological growth while also reducing chemical use.

Biofilm is another source of fouling. It creates a layer that protects microorganisms from disinfectant chemicals, which makes cleaning difficult. Biofilm also prevents anti-corrosion chemicals from reaching the heat exchanger’s surface. Moreover, biofilm formation prevents microorganisms from being flushed away easily during cooling tower blowdown. By filtering particulates less than 5 microns in size, crossflow microsand filtration helps reduce fouling, thereby maintaining the equipment efficiency designed by manufacturers.

Reduced Conductivity. In process cooling, anything that affects thermal conductivity is critical. While both fouling and scaling reduce thermal conductivity (or heat transfer), fouling has the greater impact on conductivity. Every thousandth-of-an-inch increase in fouling necessitates a 10 percent increase in power from the system: The deposits insulate the heat transfer surfaces, impeding heat exchange.

While the thermal conductivity of copper pipes can be as high as 398 W/m2K, the thermal conductivity of calcium carbonate — the most common cause of scaling — is just 2.26 W/m2K. In other words, calcium carbonate’s thermal conductivity is 1 percent of that of copper. Calcium sulfate and calcium phosphate — also common scaling sources — have low conductivity similar to calcium carbonate. Yet biofilm — a root cause of fouling — has a thermal conductivity significantly lower than the salts that cause scaling, just 0.63 W/m2K. This is why Eneref Institute advocates for crossflow microsand filtration as a means to maintain heat transfer efficiency.

Crossflow Microsand Filtration for Cooling Tower Water Treatment

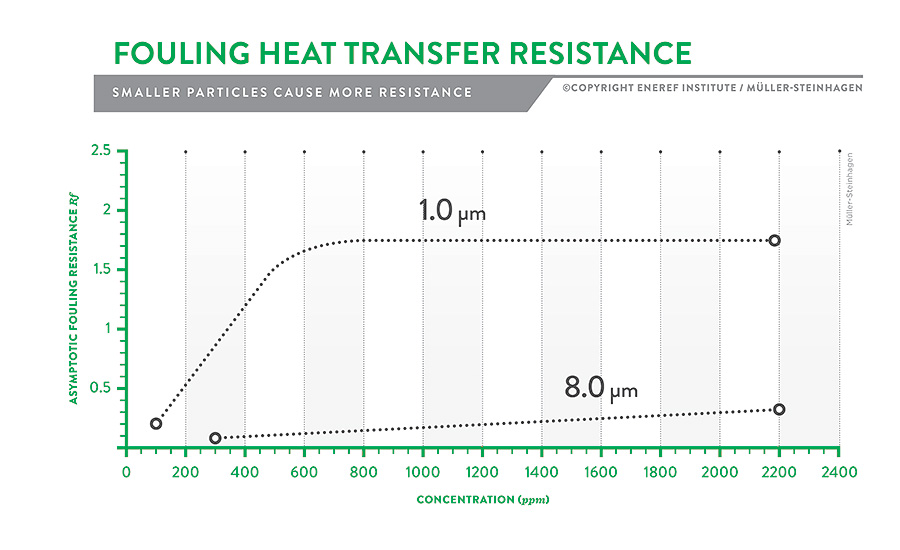

The rate of fouling is much faster when smaller particles are present in the water than it is when larger particles are present, explaining why fine filtration is essential.

Fouling Particles. The rate of fouling is much faster when smaller particles are present in the water than it is when larger particles are present. This is why fine filtration is important. Because the surface of metal is jagged at microscopic sizes, fouling buildup primarily is dependent upon particle size.

As water flows across the metallic surface of the heat exchanger, larger particles will not initially attach. Instead, they roll and bounce off. However, the fine particles — those that crossflow microsand filtration systems are designed to capture — are the first to cling to surfaces, according to research by Müller-Steinhagen published in The Canadian Journal of Chemical Engineering. By that measure, if the concentration of 8-micron-sized particles were to double, the fouling heat transfer resistance in the system would increase by only 5 percent. By contrast, if the concentration of 1-micron-sized particles were to double, the fouling heat transfer resistance could increase by as much as 150 percent.

Microbial Growth. While no filtration system eliminates Legionella, reducing fine particles can break up the shelters where microbes hide from disinfecting chemicals. In this way, crossflow microsand filtration technology helps maximizes the effectiveness of chemicals used to treat process cooling towers. They diminish the opportunity for microbes — including protozoa, algae, fungi and Legionella — to cultivate and multiply. Reducing fine particles also removes the nutrient source for bacterial growth.

Performance. Beyond savings in energy and water use, Eneref Institute found a significant number of crossflow microsand filtration users reported reduced maintenance of their heat exchangers. Users also reported that their process cooling systems operated for longer durations, uninterrupted, with minimal upkeep costs and at higher levels of performance.

In conclusion, saving water is a critical benefit of such filtration systems. According to the U.S. Government Accountability Office, 40 states expect water shortages (under average weather conditions) in some portion of their land within the next 10 years. Cooling towers consume a great deal of water, and competition with agriculture, industry and municipalities will only exacerbate water scarcity in the future.

Obaidullah Mohiuddin, Ph.D., is an environmental scientist with Eneref Institute, a Doylestown, Pa.-based research and advocacy organization for sustainable development.
